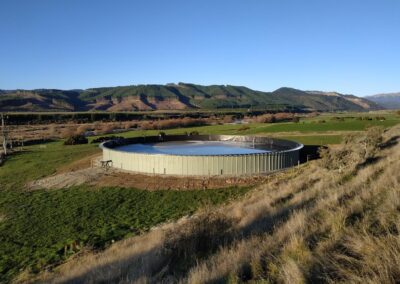

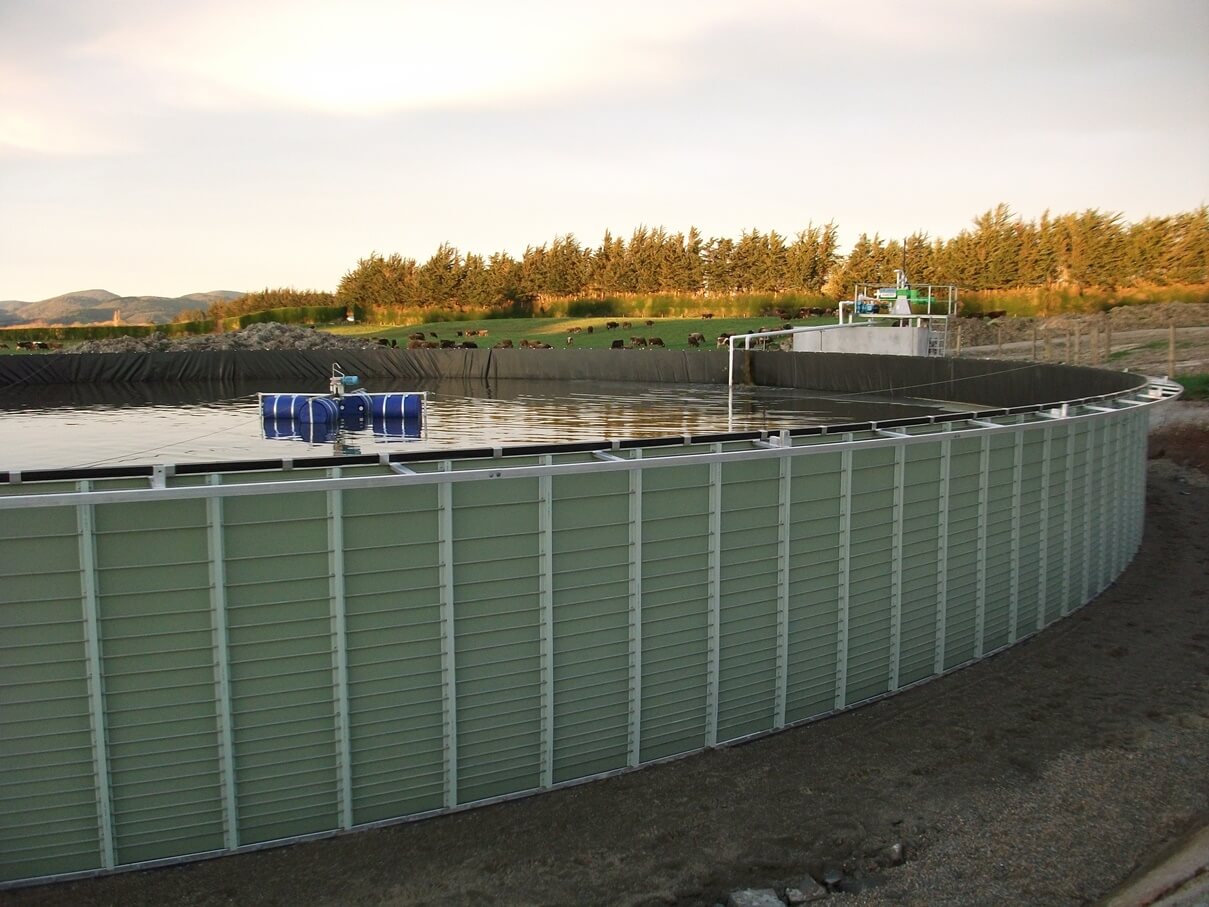

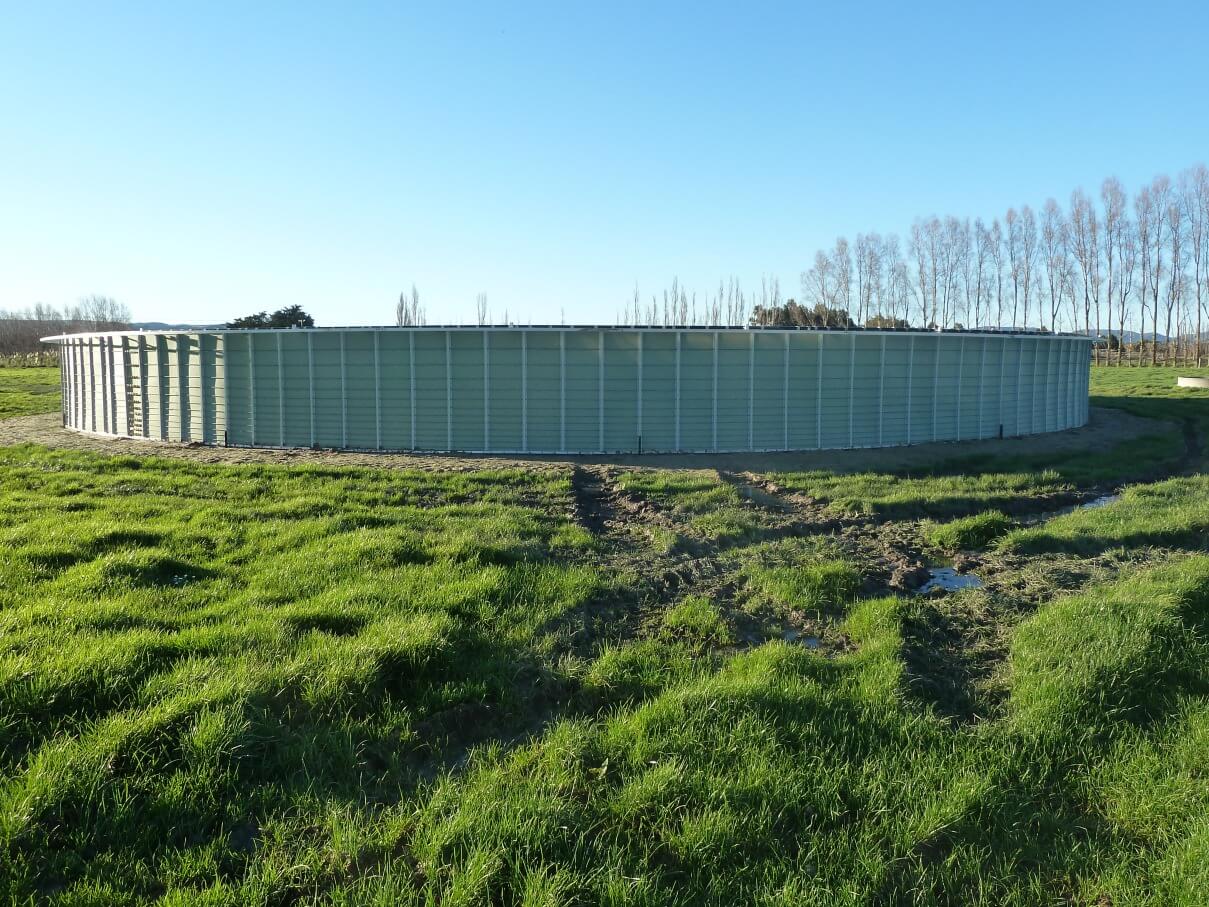

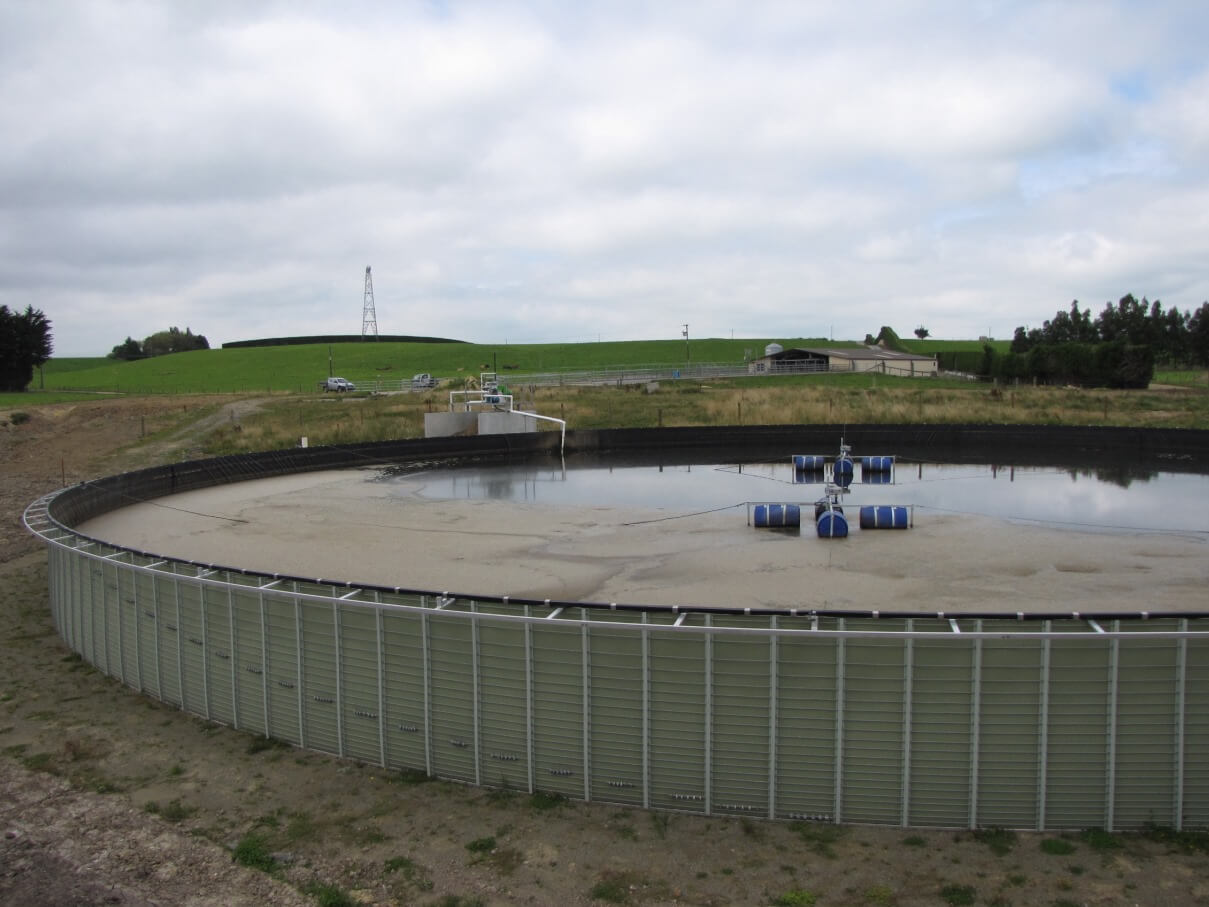

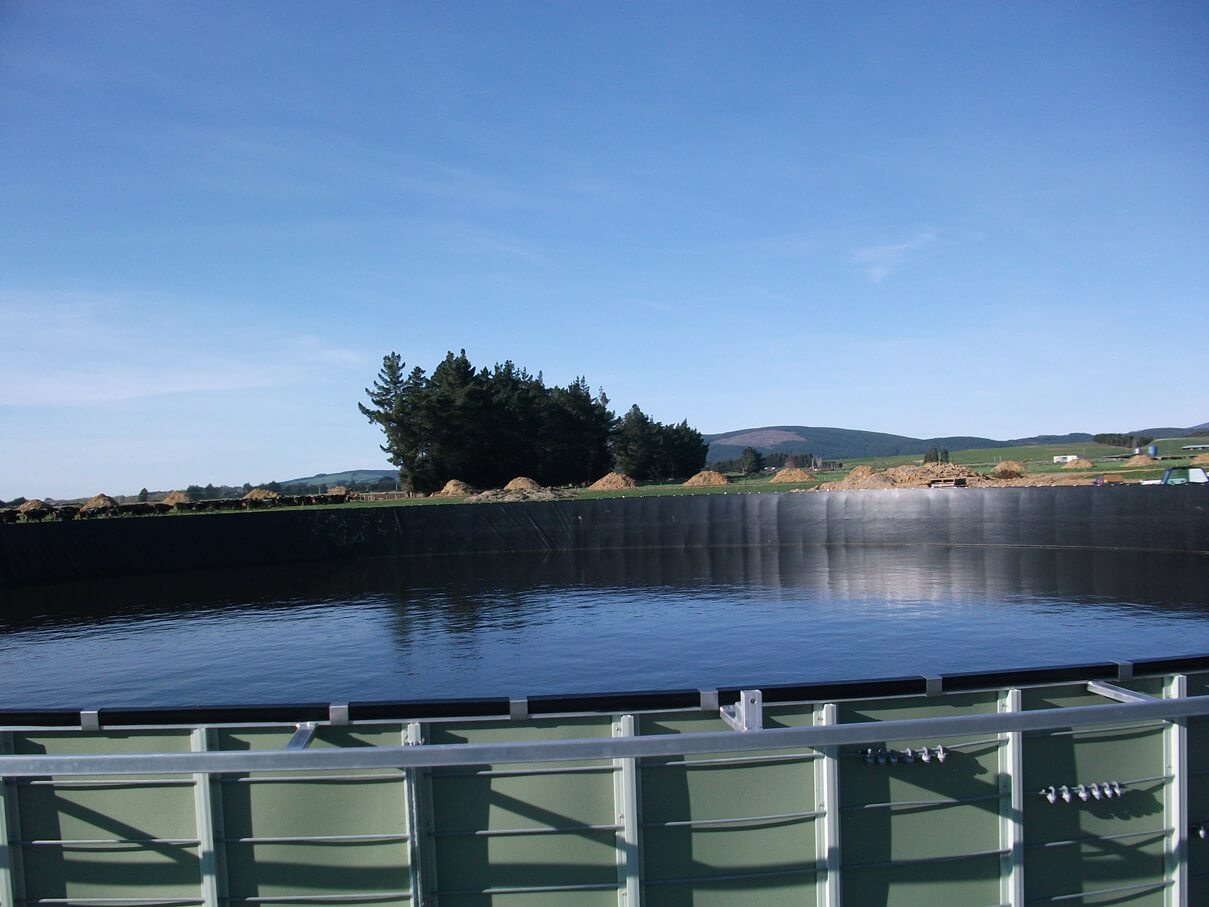

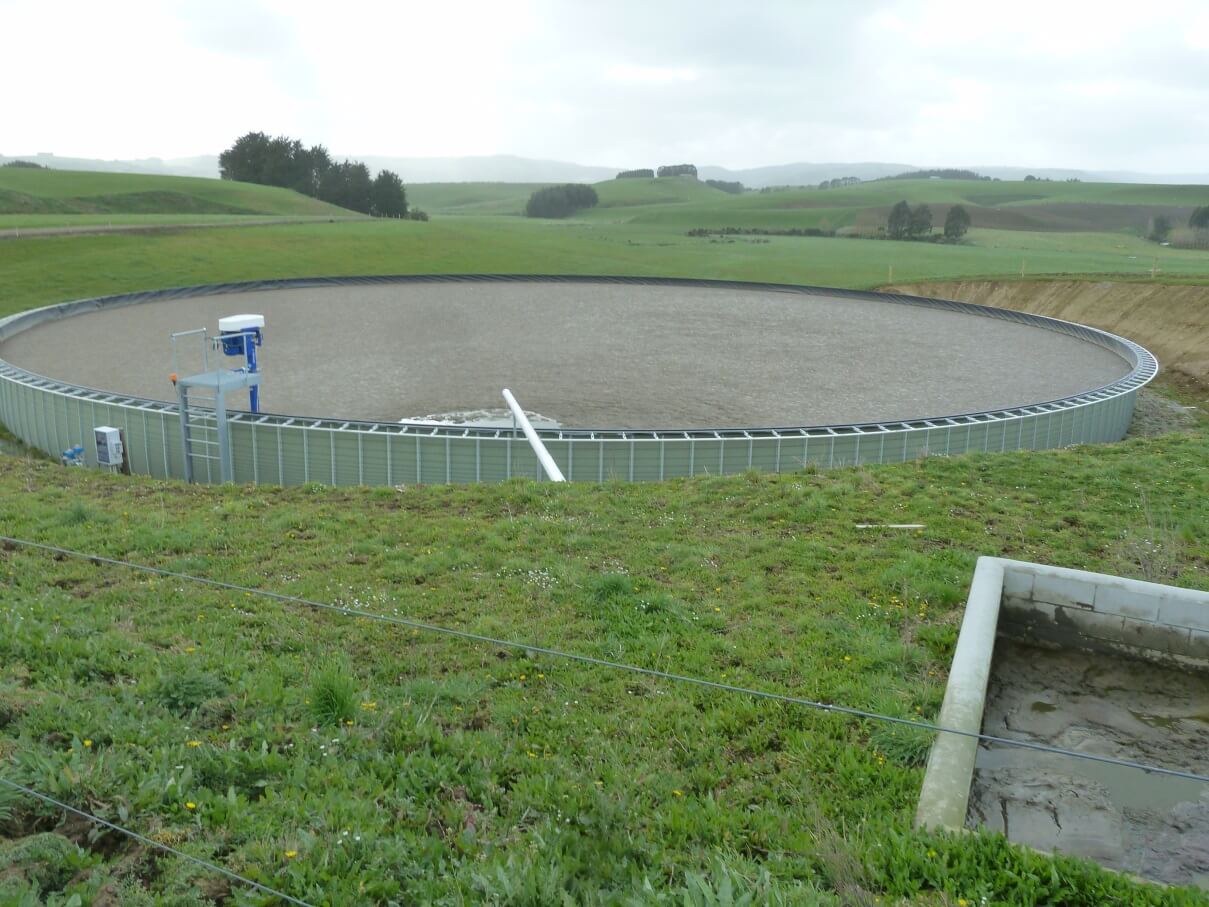

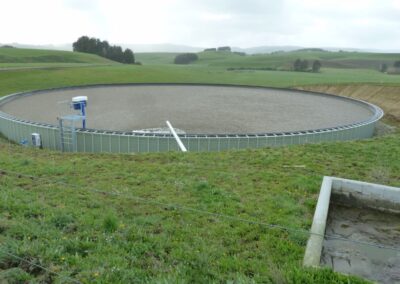

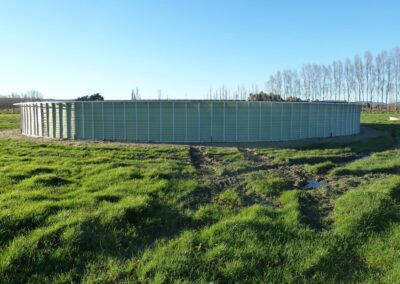

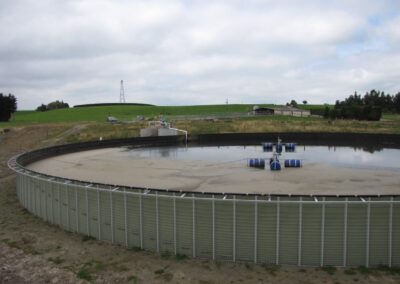

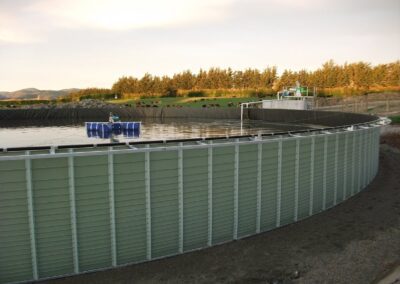

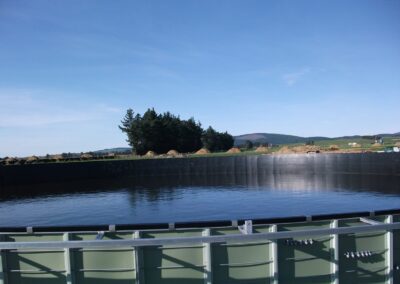

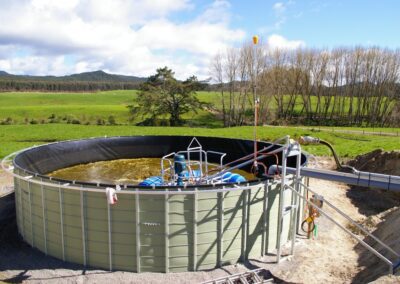

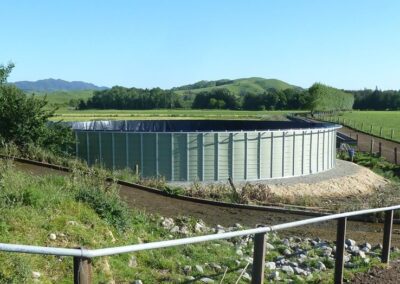

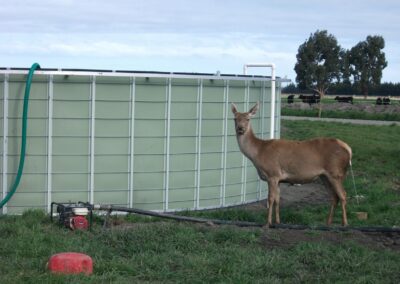

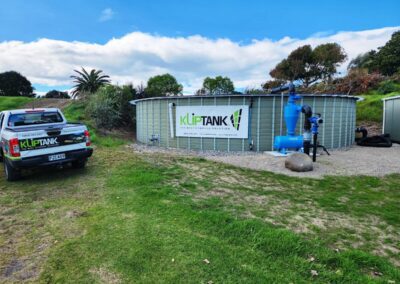

Uncovered Tanks

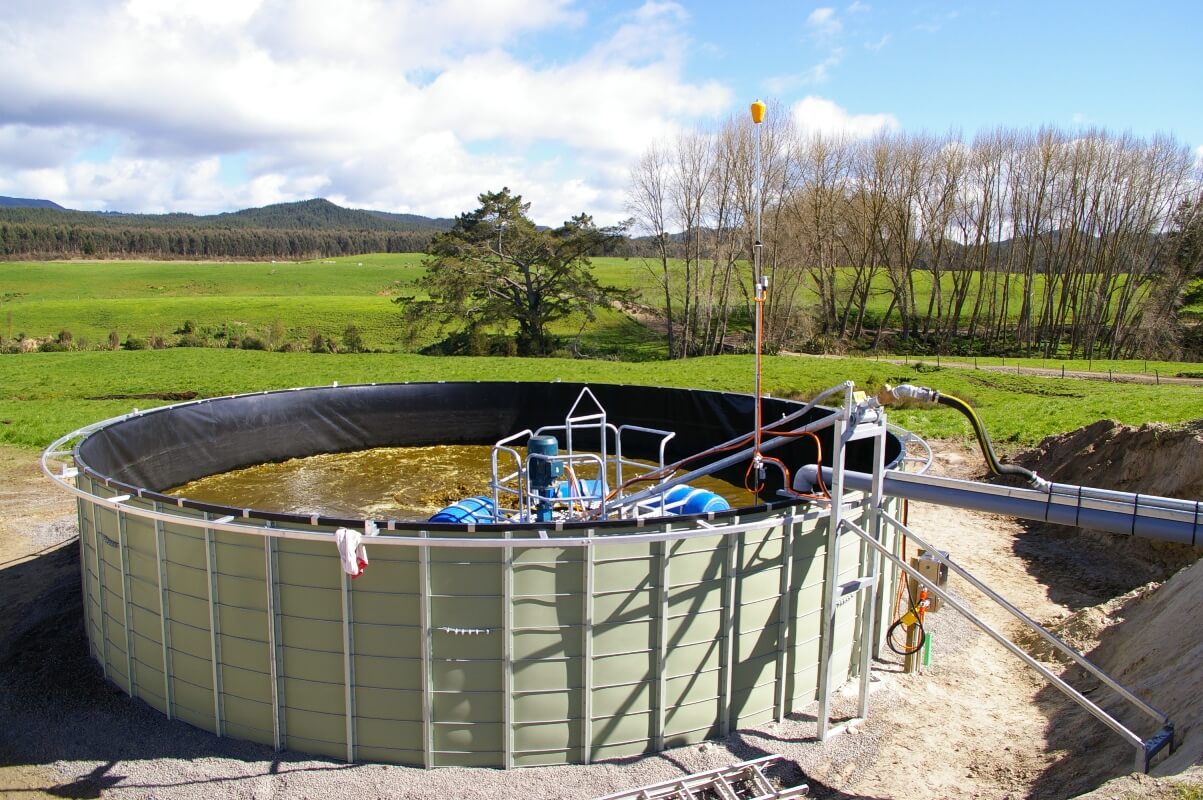

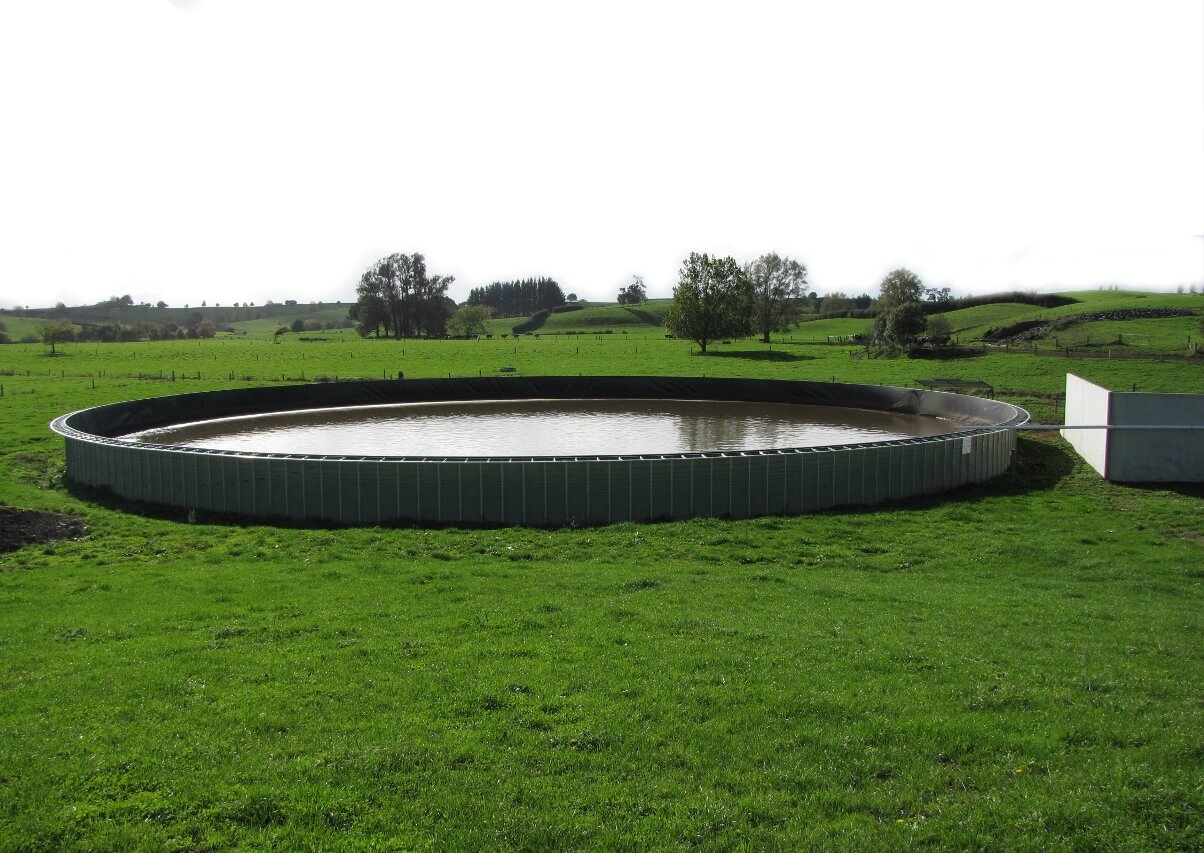

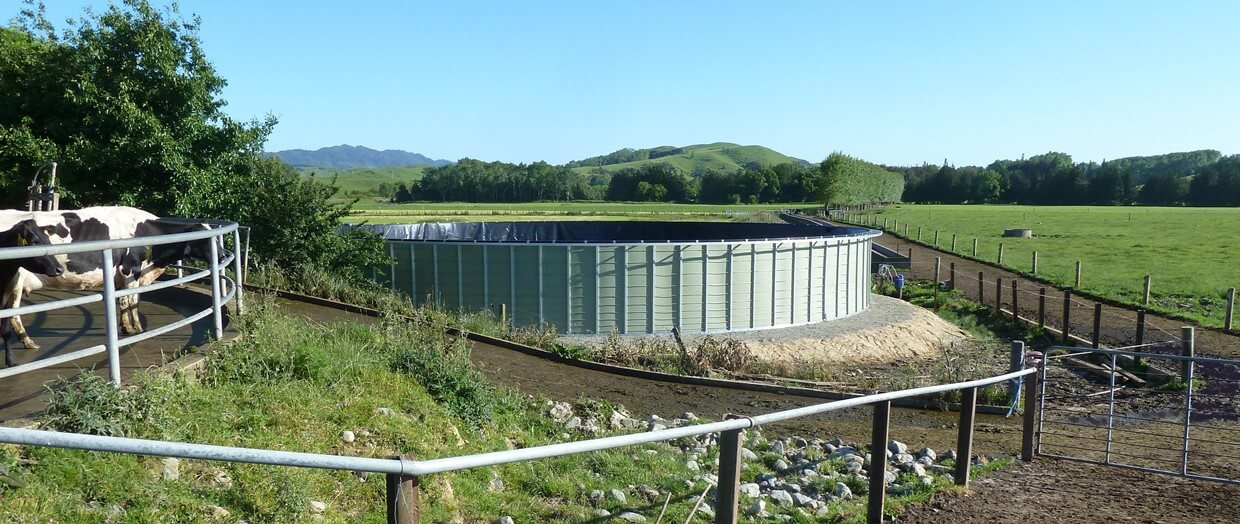

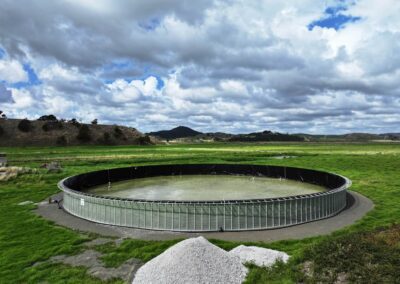

Uncovered KlipTanks are the reliable choice for your dairy effluent storage.
With over 500 installations, our tanks have proven their worth in managing on-farm dairy effluent.
Uncovered tanks also offer a versatile solution for a range of applications. Whether you need a washout bay for truck yards, a rainfall catchment system, or a fish farming setup, our tanks are up to the task. With their large surface areas, they provide ample space to meet your specific needs.
We understand the challenges of varying soil conditions. That’s why uncovered tanks can be installed on most soil types, including peat, high water table areas, and soft soils. No toroidal rings or concrete bases are required, making the installation process hassle-free and cost-effective.
Our team takes care of the Building Consent process on your behalf, providing you with peace of mind and saving you valuable time and effort.
At KlipTank, we prioritise quality and compliance. Our uncovered tanks meet the rigorous standards outlined in the IPENZ Practice Note 21: Farm Dairy Effluent Pond Design and Construction. You can trust our tanks to deliver exceptional performance and adhere to industry best practices.
UNCOVERED TANKS
- Max Volume: 6 million litres
- Max Height: 3m high
- Max Diameter: 45.8m diameter
Benefits of a Uncovered KlipTank
- Flat-pack design – Our patented design allows delivery of flat-packed tank components direct to site, making it easy to transport and assemble on different sites, including size-restricted areas and challenging terrains like hills or basements.
- Quick to erect – KlipTank’s can be installed within 1-7 days reducing installation costs and time.
- No concrete foundation required – No expensive groundwork is required for installation, making them quick and easy to build and reducing your carbon footprint.
- Ability to build on most soil types – KlipTank’s can be built on most soil types, making them the ideal storage option for soft soils, high water tables and flood plains.
- Relocatable – KlipTanks can be easily moved if your circumstances change, making them a great option for temporary storage solutions.
- Multiple sizes/configurations available – KlipTank’s can hold up to 6 million litres of liquid. Talk to us about your specific needs and we can come up with a customised option to suit.
- Covered and uncovered options – All Kliptanks are able to be fitted with a range of customised fittings to suit your requirements.
- Made in New Zealand – Our Tauranga based staff can provide full support right through from pre-sale technical support to after-sales warranty and technical support. If you have any issues, we are here to help.
- Neutral colour options – KlipTanks come in neutral colours that blend into their surrounding environments.
- Modular design –Our modular design handles ground movement well with proven earthquake performance, providing a sturdy and reliable storage option.
- Above-ground – Choosing an above-ground storage option avoids water table issues and provides peace of mind around safety.
- Non-corrosive material – KlipTank’s wont rot or rust and can be used in high salt-exposure environments.
- Recyclable – KlipTanks are made from recycled products and all manufacturing offcuts are recycled, reducing environmental impacts.
- Sustainability – Our tanks are made with the environment in mind. KlipTanks are a great sustainable option to minimise wastage of water.
- Virtually maintenance free – KlipTank’s are easy to use and require minimal workload once installed.
- Export friendly – Its flat-pack design simplifies containerisation for export, ensuring easy global deployment and reducing freight volume, helping cut costs.
- 25-year design life – Our KlipTank’s come with a 25-year design life providing long term peace of mind.
Customisable Fittings
- Base drain connections – for complete emptying of the tank when required
- Additional inlets and outlets –from 50mm to 300mm designed for your required flow rates
- Level indicators – for covered & uncovered tanks
- Wash down systems – great for maintenance
- Ultrasonic algae control – The LG Sonic algae control systems emit specific ultrasonic waves in order to control algae in water surfaces
- Ground anchors – Provide added stability in high-wind zones
- PTO & slurry tanker connections – make it easy to connect
- Tank access hatches for installation –minimizes Health & Safety risk from working at heights
- Anti-vortex plates – great for fast pumping out from the tank
- Valves and other pipework fittings – to compliment your equipment
- Stainless steel fittings – most fittings available in 304 or 316 stainless
Enquire Now
Frequently asked questions
Do I need a concrete pad for a KlipTank?
No, you don’t. Most of our tanks require a ground bearing of 90kPa unless we specify otherwise. Generally, you would remove the topsoil down to a hard base then build the tank pad with aggregate (GAP 65 or rotten rock for example) and a 60mm compacted layer of crusher dust or fines.
Who can do my site preparation?
You have the option to do it yourself or hire a local contractor. We provide detailed instructions to make the process as easy as possible, and our Installation Manager is available for advice at any time.
Can a KlipTank be used on soft or unstable ground like Peat?
Absolutely. KlipTank specialises in these situations. Our tanks are engineered to withstand subsidence and movement. Please note that customers will need to sign a Waiver at the time of entering into an Agreement, acknowledging the need for extra monitoring and the possibility of additional costs for site preparation and maintenance.
Do we need to get a building consent for our KlipTank?
Yes, according to the NZ Building Code, any structure holding more than 35,000 litres requires a building consent. KlipTank will handle all the paperwork and lodge it on your behalf. We charge a small admin fee for this service and will pass on the Council’s charges at the end of your installation. This process ensures that a certified Engineer signs off on the tank design and conducts site-specific structural calculations for seismic, wind, and snow loadings.
What are KlipTanks made from?
KlipTanks are made from high-quality materials sourced from New Zealand.
- Walls: HDPE Panel with UV Inhibitors (thickness 4.5mm) with PVC extruded upright.
- Top and Bottom Rings: Grade 6106 aluminium.
- Wire Ropes: Galvanised wire rope with stainless steel swage ends and bronze connecting turnbuckles are customised according to the specific storage requirement.
- Liner: Liners are customised according to the specific storage requirement.
- Roof Cover: Available in UV block out, stabilised PVC cover and hard roof cover options.
- Fittings: Alloy plate fittings with galvanised steel nozzle at size specified. Glass-reinforced Nylon bulkhead fittings (Hansen) and stainless fasteners.
